Chapter 4 Exploring Platforms (GPL)

How many platforms exist, and what technologies do they use?

num_platforms <- dbGetQuery(con, 'select count(*) as n from gpl')
num_platforms

##       n
## 1 25880

uniq_tech <- dbGetQuery(con, 'select distinct technology from gpl')
NROW(uniq_tech)

## [1] 18

num_uniq_tech <- dbGetQuery(con, 'select technology, count(*) as Num_Platforms from gpl group by technology')

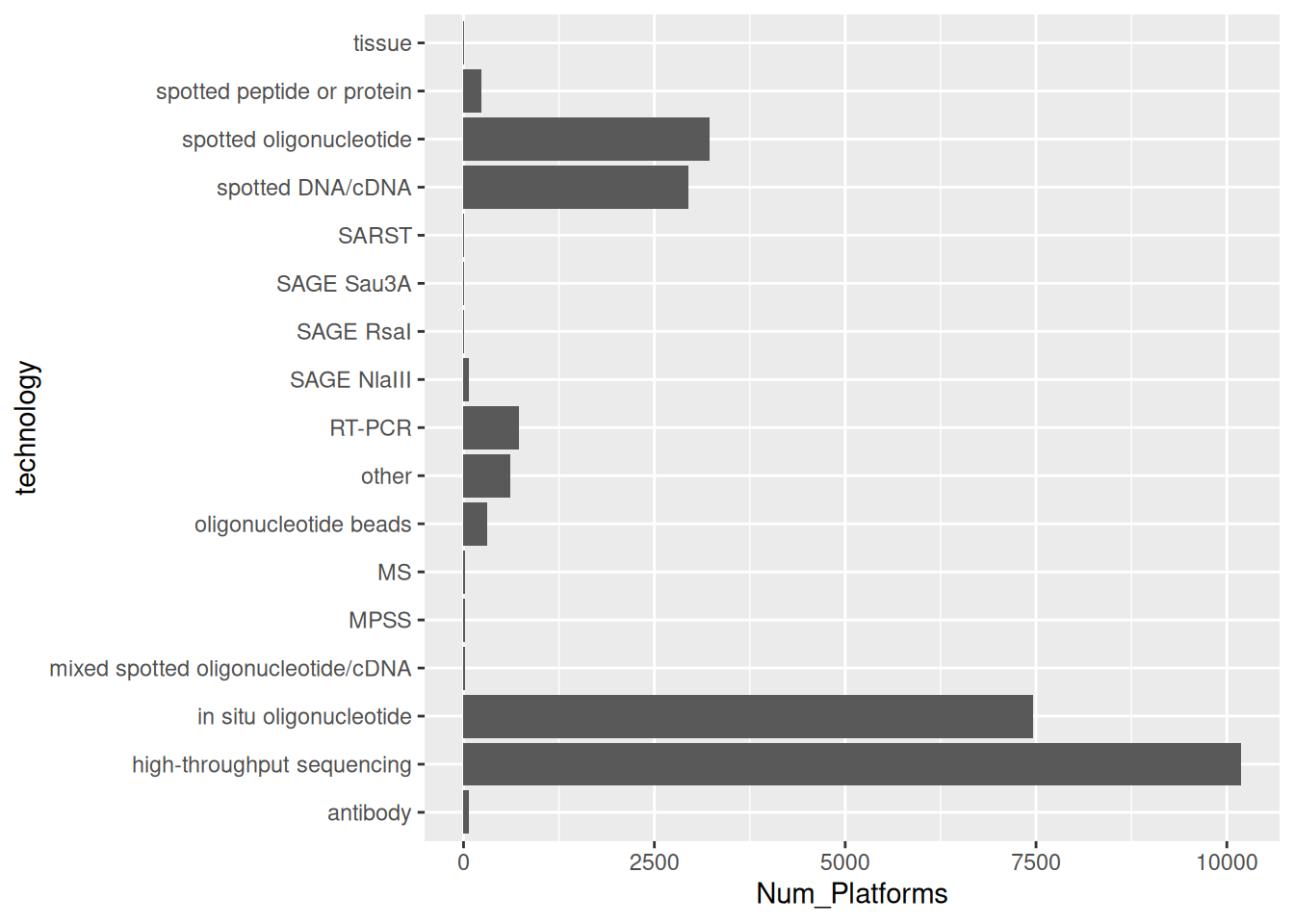

# Quick plot
library(ggplot2)

## Need help? Try Stackoverflow: https://stackoverflow.com/tags/ggplot2

plot_df <- subset(num_uniq_tech, !is.na(technology))
 ggplot(plot_df, aes(x = technology, y = Num_Platforms)) +
   geom_col() + coord_flip()

4.1 Restrict to human

num_uniq_tech_human <- dbGetQuery(con, "select technology, count(*) as Num_Platforms from gpl where organism = 'Homo sapiens' group by technology order by Num_Platforms desc")
num_uniq_tech_contain_human <- dbGetQuery(con, "select technology, count(*) as Num_Platforms from gpl where organism like '%Homo sapiens%' group by technology order by Num_Platforms desc")

library(dplyr)

##
## Attaching package: 'dplyr'

## The following objects are masked from 'package:stats':
##
##     filter, lag

## The following objects are masked from 'package:base':
##
##     intersect, setdiff, setequal, union

uniq_tech_all <- bind_rows(
  transform(num_uniq_tech_human, type = 'human only'),
  transform(num_uniq_tech_contain_human, type = 'contains human'),
  transform(num_uniq_tech, type = 'All species')
)

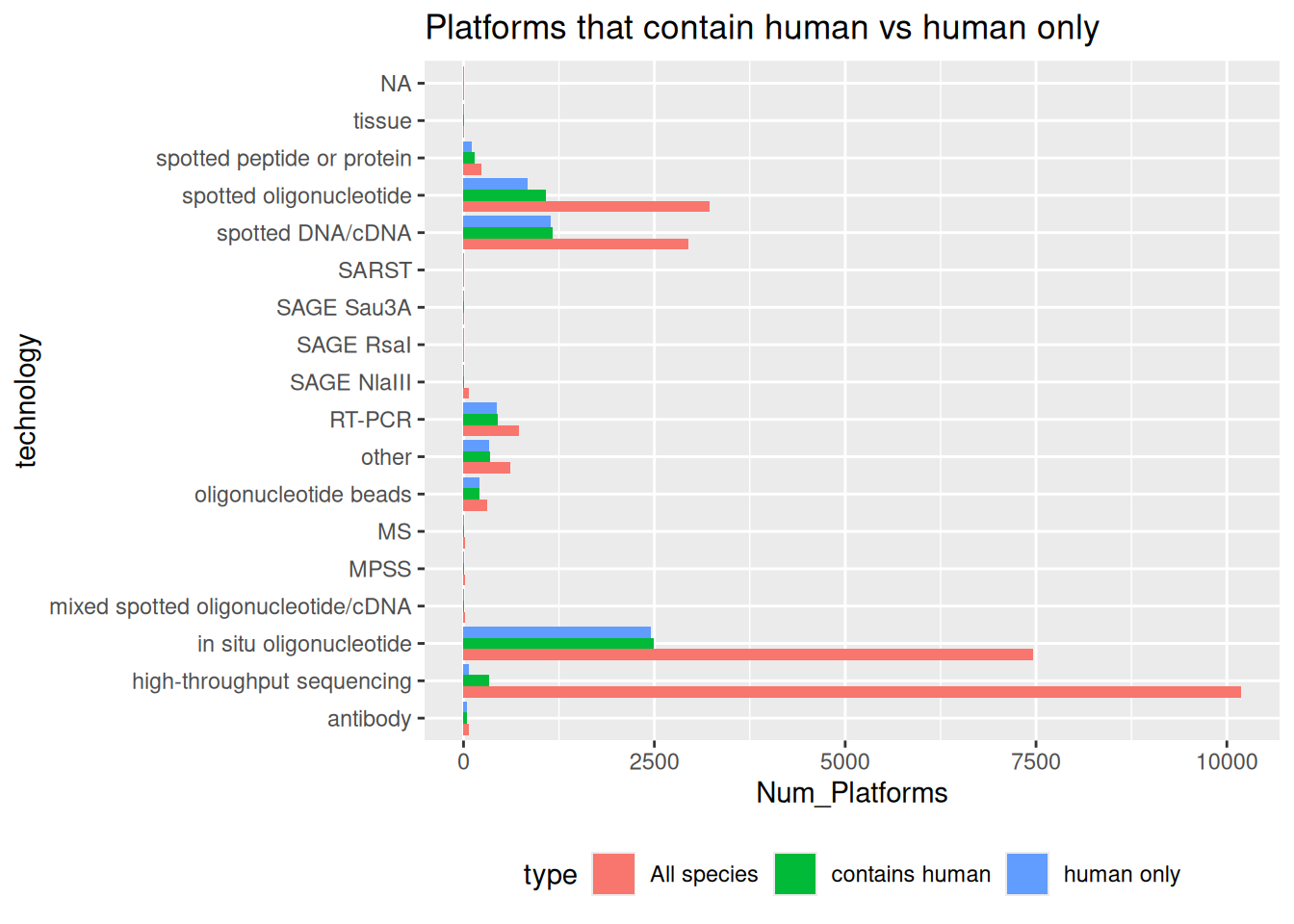

ggplot(uniq_tech_all, aes(technology, Num_Platforms, fill = type)) +
  geom_col(position = 'dodge') + coord_flip() +
  theme(legend.position = 'bottom') +
  ggtitle('Platforms that contain human vs human only')
